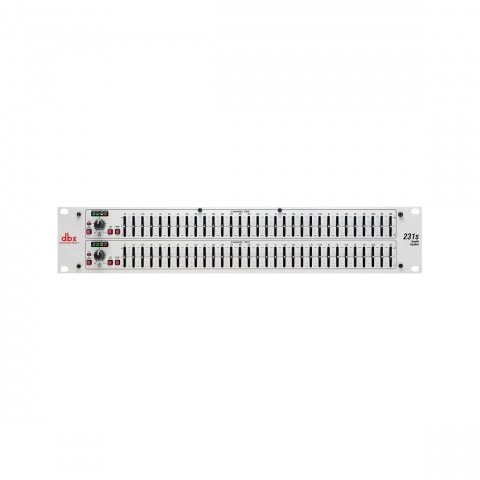

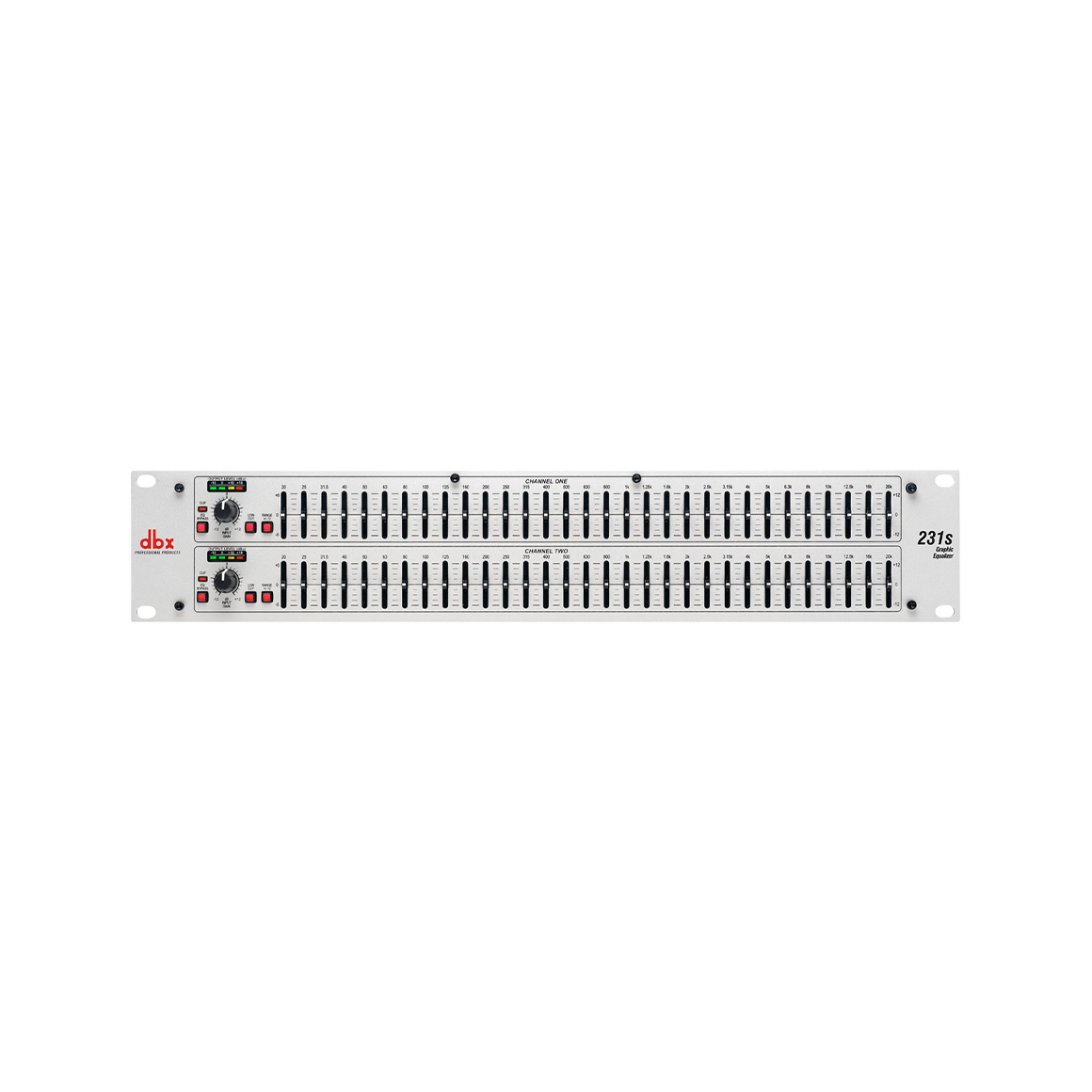

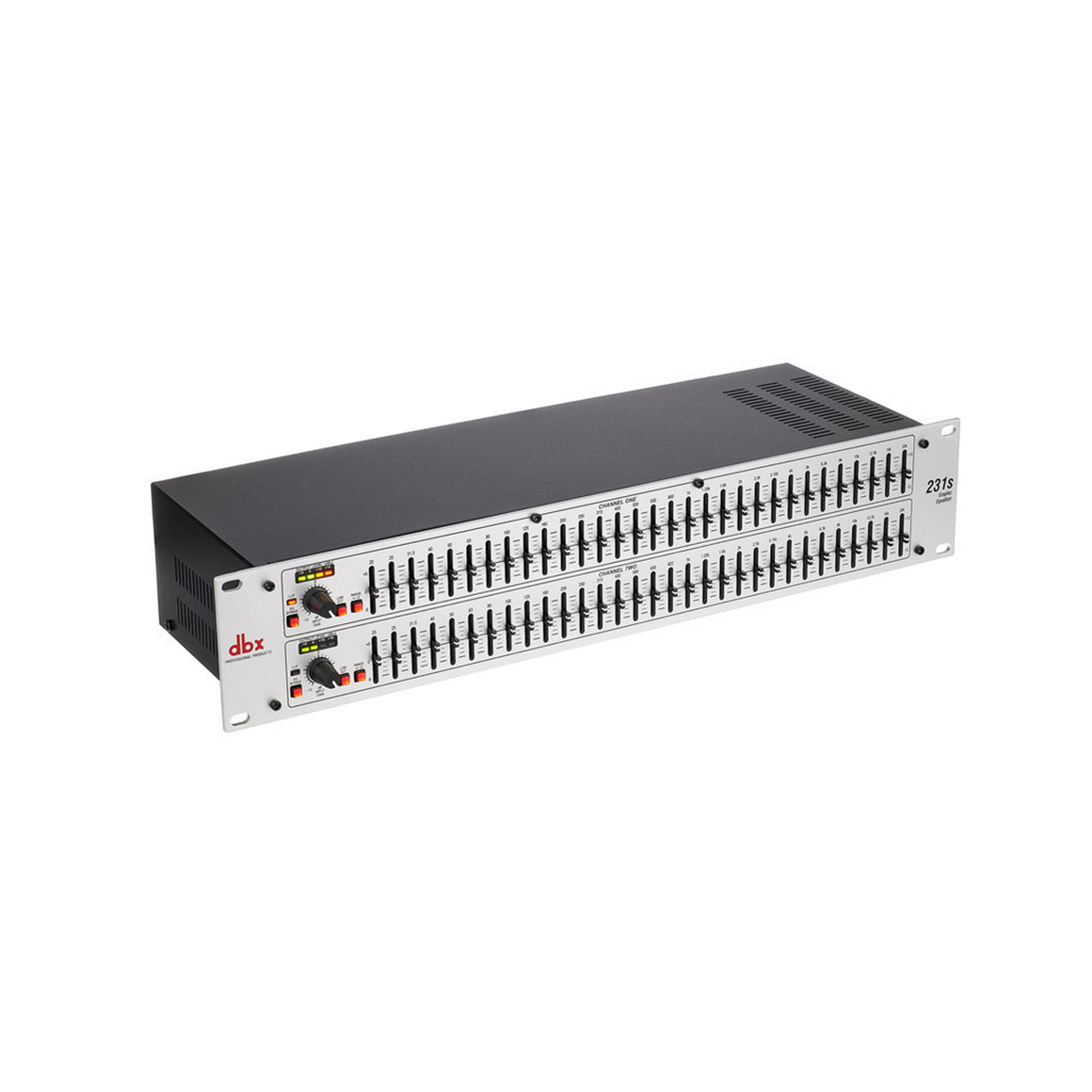

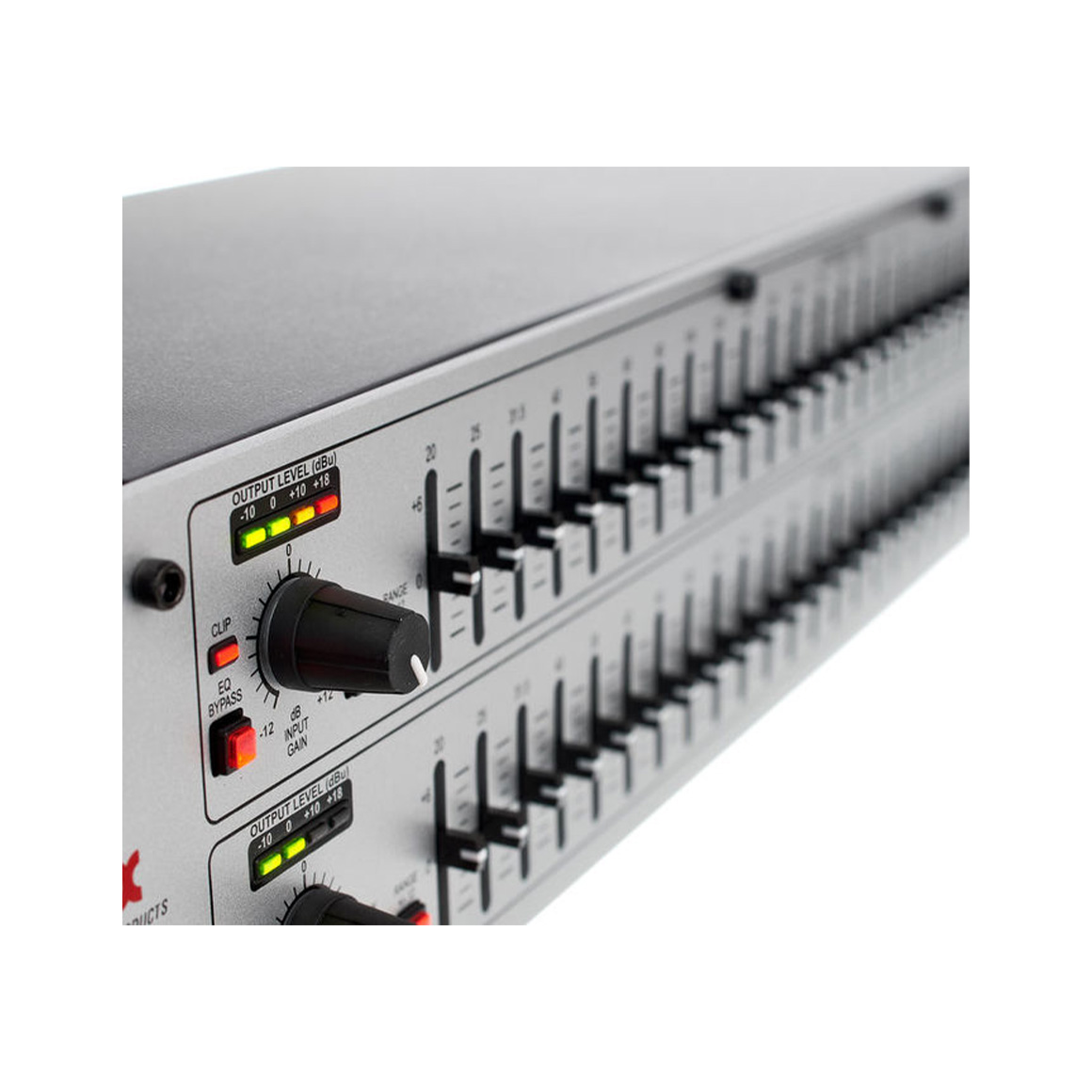

dbx 231s EQ 2軌31段EQ rack式 等化器

dbx 231s rack式EQ 2軌31段音頻等化器
正品公司貨 錄音室 聲音工程 混音

規格

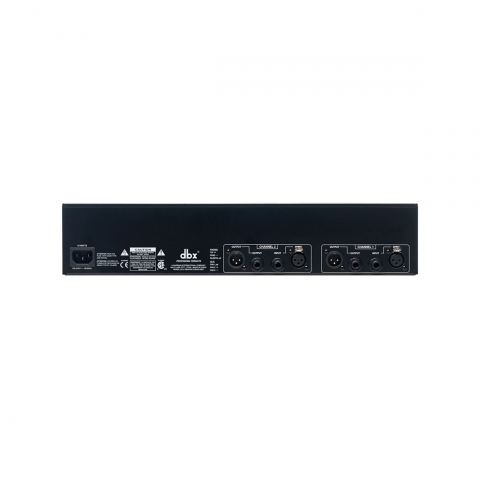

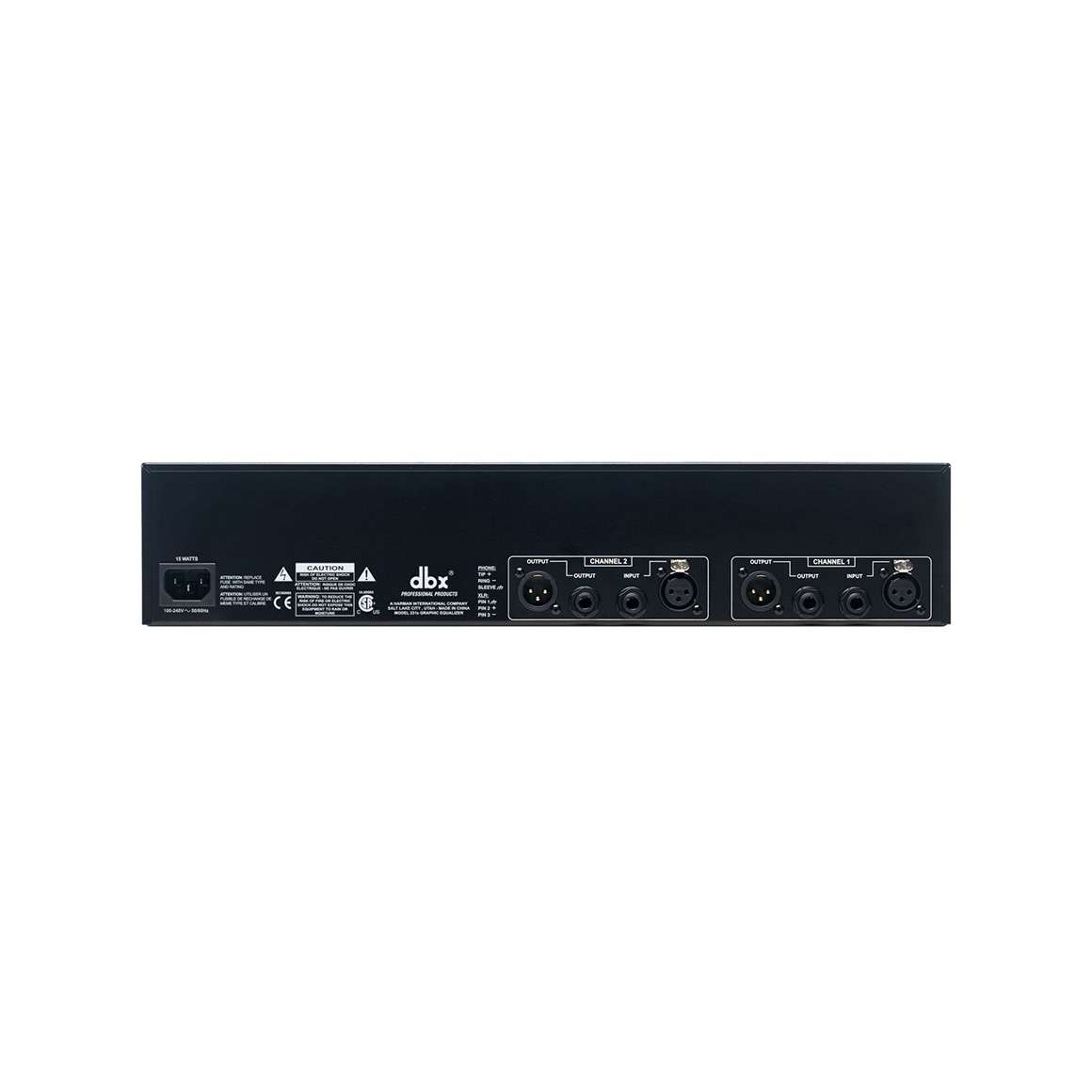

- Input Connectors : 1/4" TRS, female XLR (pin 2 hot)

- Input Type Electronically balanced/unbalanced, RF filtered
- Input Impedance : Balanced 40k ohm, unbalanced 20k ohm
- Max Input : >+21dBu balanced or unbalanced
- CMRR : >40dB, typically >55dB at 1kHz
- Output Connectors : 1/4" TRS, male XLR (pin 2 hot)
- Output Type : Impedance-balanced/unbalanced, RF filtered
- Output Impedance : Balanced 100 ohm, unbalanced 50 ohm
- Max Output : >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
- Bandwidth : 20Hz to 20kHz, +0.5/-1dB
- Frequency Response : <10Hz to >50kHz, +0.5/-3dB
- Dynamic Range : Typically >112dB
- Signal to Noise Ratio : Typically >95dB
- THD+Noise : <0.003%
- Interchannel Crosstalk : <-90dB, 20Hz to 20kHz
- Bypass Switch : Bypasses the graphic equalizer section in the signal path
- Low cut Switch : Activates the 50Hz 12dB/octave high-pass filter
- Range Switch : Selects either +/- 6dB or +/-12dB slider boost/cut range
- Operating Voltage : 100-240VAC 50/60Hz
- Power Consumption : 15W
- Power Connector : IEC receptacle
- Unit Weight : 6.2 lbs.(2.81 kg)
- Shipping Weight : 7.9 lbs.(3.58kg)
- Dimensions : 3.5" (8.9cm) H x 6"(15.24cm) D x 19" (48.26cm) W
